Z120 Galvanized Plate/Sheet

Brief Introduction：

Galvanizing is an economical and effective rust prevention method that is often used. About half of the world's zinc output is used in this process. Galvanized steel plate is to prevent the surface of the steel plate from being corroded to extend its service life. A layer of metal zinc is coated on the surface of the steel plate, which is called galvanized steel plate.

Online consultation：

lily@cnhhmetal.com

+86-18036007696

Parameter

Chemical Composition

Mechanical Properties

Product Name	Galvanized steel plate/sheet
Material	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Thickness	0.12-6.00mm or customer's requirement
Width	600mm-1500mm, according to customer's requirement
Zinc coated	30g-275g/m2
Type of Coating	Hot Dipped Galvanized Steel
Surface Treatment	Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Standard	JIS 3302 / ASTM A653 /EN10143 AISI , ASTM , DIN , GB , JIS G3302 G3312 G3321 , BS
Technique	Hot Rolled / Cold Rolled
Product Application	1. Fence, greenhouse, door pipe,greenhouse 2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient
Delivery Time	Usually within 10-45 days after receipt of advance payment
Certificates	API ISO9001-2008,SGS.BV

bse metal type	Grade	CHEMICAL COMPOSITION %
bse metal type	Grade	C	Si	Mn	P
cold rolled steel sheet	DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF	≤0.10	-	≤0.50	≤0.035
	DC52D+Z (St04Z), DC52D+ZF	≤0.08	-	≤0.45	≤0.030
	DC53D+Z (St05Z), DC53D+ZF	≤0.08	-	≤0.40	≤0.030
	DC54D+Z (St06Z), DC54D+ZF	≤0.01	≤0.10	≤0.30	≤0.025
	DC56D+Z (St07Z), DC56D+ZF	≤0.01	≤0.10	≤0.30	≤0.025
hot rolled steel sheet	DD51D+Z (St01ZR, St02ZR)	≤0.10	-	≤0.50	≤0.035
hot rolled steel sheet	DD54D+Z (St06ZR)	≤0.01	≤0.10	≤0.30	≤0.025

Usage	Grade	Yield Strength (MPA)	Tensile Strength (MPA)	Elongation rate %
Punching galvanized steel	DX51D+Z	~	270-500	>=20
	DX52D+Z	140-300	270-420	>=22
	DX53D+Z	140-260	270-380	>=26
	DX54D+Z	140-220	270-350	>=30
Structure galvanized steel	S220GD+Z	>=220	>=300	>=18
	S250GD+Z	>=250	>=330	>=17
	S280GD+Z	>=280	>=360	>=16
	S320GD+Z	>=320	>=390	>=15
	S350GD+Z	>=350	>=420	>=14
	S400GD+Z	>=400	>=470	~
	S500GD+Z	>=500	>=530	~
	S550GD+Z	>=550	>=560	~

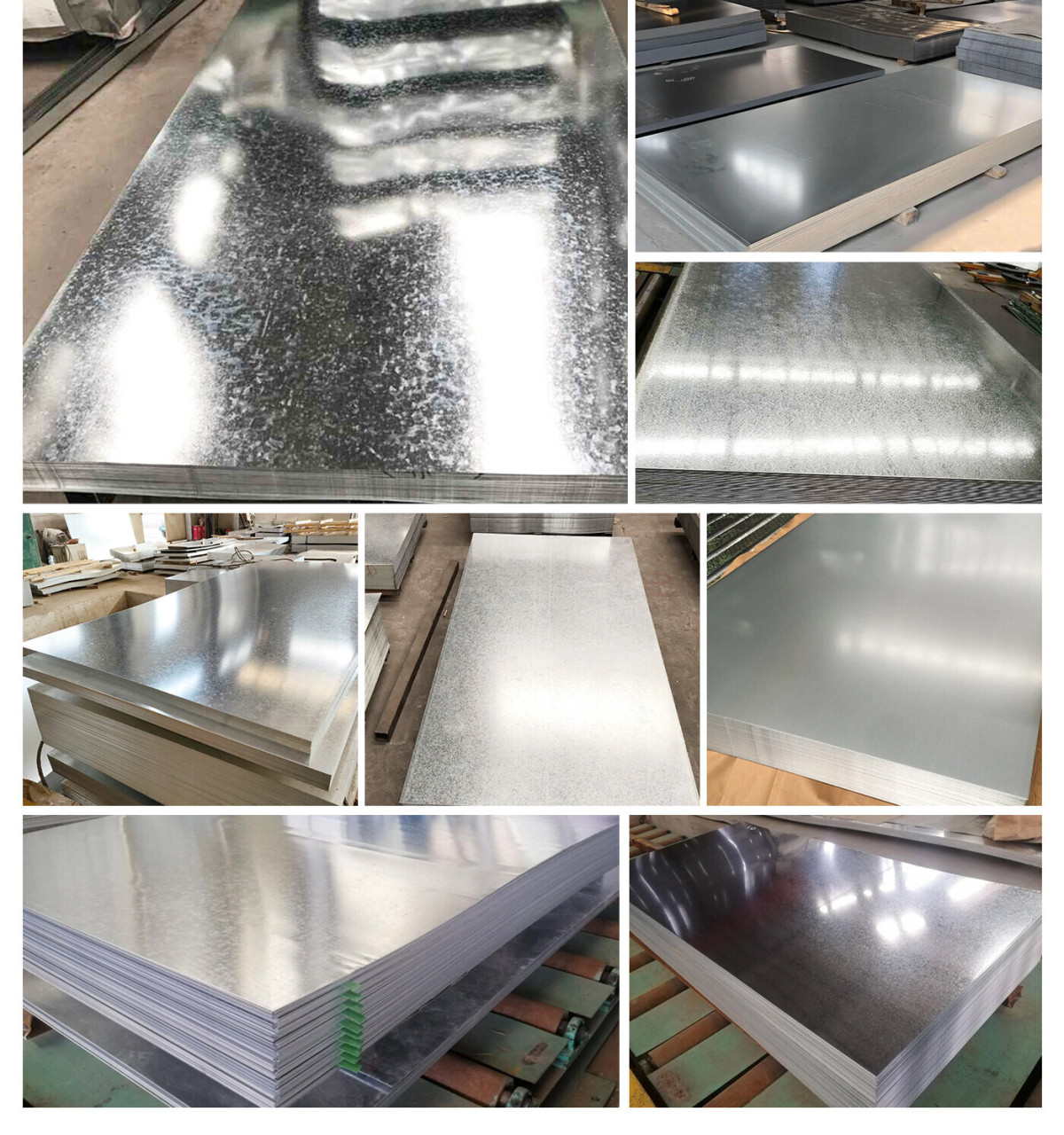

Product display

STEEL STANDARDS AND GRADES

Chinese Standard	Japanese Standard	European Standards
DX51D+Z/DC51D+Z (CR)	SGCC	DX51D+Z
DX52D+Z/DC52D+Z	SGCD1	DX52D+Z
DX53D+Z/DC53D+Z/DX54D+Z/DC54D+Z	SGCD2/SGCD3	DX53D+Z/DX54D+Z
S220/250/280/320/350/550GD+Z	SGC340/400/440/490/570	S220/250/280/320/350GD+Z
DX51D+Z/DD51D+Z (HR)	SGHC	DX51D+Z

Quality inspection

PACKAGING

Excellent package: Anti-water paper and plastic film+covered by iron sheet+ strapped with min three strappingstrips+fixed on the iron or wooden pallets by strapping stripslt can effectively pratect products from corrosion andvarious climate changes during ocean transportation.

We have long-term cooperation with many experiericed shipping companies, and we will find the most suitable transportation method for you.

FAQ



Q1:How to choose the best metal material supplier in China?

A1:Your metal material supplier should provide you with the best solution in a timely manner.

They should provide competitive prices and high-quality services to support your project



Q2:What is the minimum order quantity for steel?

A2:If samples are in stock, the minimum order quantity will be even less. Customization for small sizes is also possible.
For custom orders, the minimum trial order quantity is 100 kilograms.



Q3:How to ensure the quality of metal materials?

A3:According to customer requirements, we ensure that the testing meets international standards and provide material certificates.

We have advanced testing equipment to analyze the metal composition and ensure the high quality of finished metal materials.



Q4:Can you help us provide samples?

A4:We have a large inventory of high-quality metal materials. If the sample you requested is the same in our inventory, we will deliver it free of charge through international express delivery.



Q5:How To Avoid The Damage Of Goods During Shipment?

A5:Checking and packaging your goods well before shipment.
Do reinforce your goods well in the container.
Discussing with our shipping agent and loading a reasonable amount of goods in the container.



Q6:What documents and certificates can you provide?

A6:We can provide all the documents required for customs clearance and registration (MSDS, product formulations, COA, assessment reports, etc.). Free trade certificates, SGS,ISO9001 FDA certification, etc. are not a problem. Please feel free to contact us.



Q7:Can we visit the source factory ourselves?

A7:Of course, before placing an order, we can provide a detailed description of the factory's production environment. During the product production process, we have dedicated personnel to supervise the production process and issue product inspection reports. If you need to visit the factory in person, we will provide reception services, but you need to sign the order commission agreement in advance.
